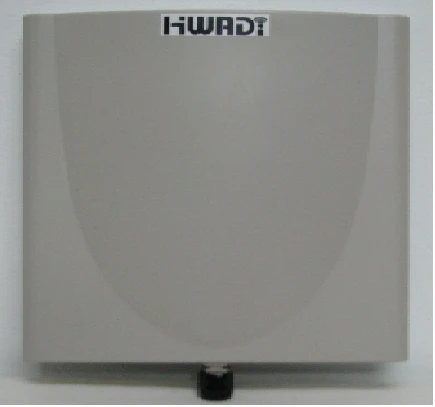

HD-18dBi 高頻平板天線

HD-18dBi 高頻平板天線 High Gain Panel Directional Antenna for 5.25/5.6/5.8 GHz Electrical Specification Frequency range 5.25 GHz~5.875 GHz Gain 18 dBi VSWR 2.0:1 Max Polarization Linear , vertical HPBW/horizontal 18° HPBW/vertical 18° Front to back ratio 25dB Downtilt 0° Power handling 10W (cw) Impedance 50Ω Connector N-jack Environmental ＆ Mechanical Characteristice Survival wind speed 216 km/hr Temperature (-40℃ ~ +80℃) Humidity 95％@25℃ Lightning protection DC ground Radome color Gray-white Radome material ABS,UV resistant Weight 0.825kgw Dimensions 215x200x48.5 mm
